IO344: Simulink-Programmable FPGA I/O Module

IO344

Simulink-Programmable FPGA I/O Module

The IO344 is a Simulink-programmable FPGA I/O module with a high performance System on Chip (SOC) and very fast analog input and output channels, offering a wide range of capabilities for radio frequency and signal processing applications such as software-defined radio (SDR), MIMO Radar and digital signal processing (DSP).

The IO344 I/O module features an additional GPS interface to connect to an external GPS antenna for sample clock synchronization.

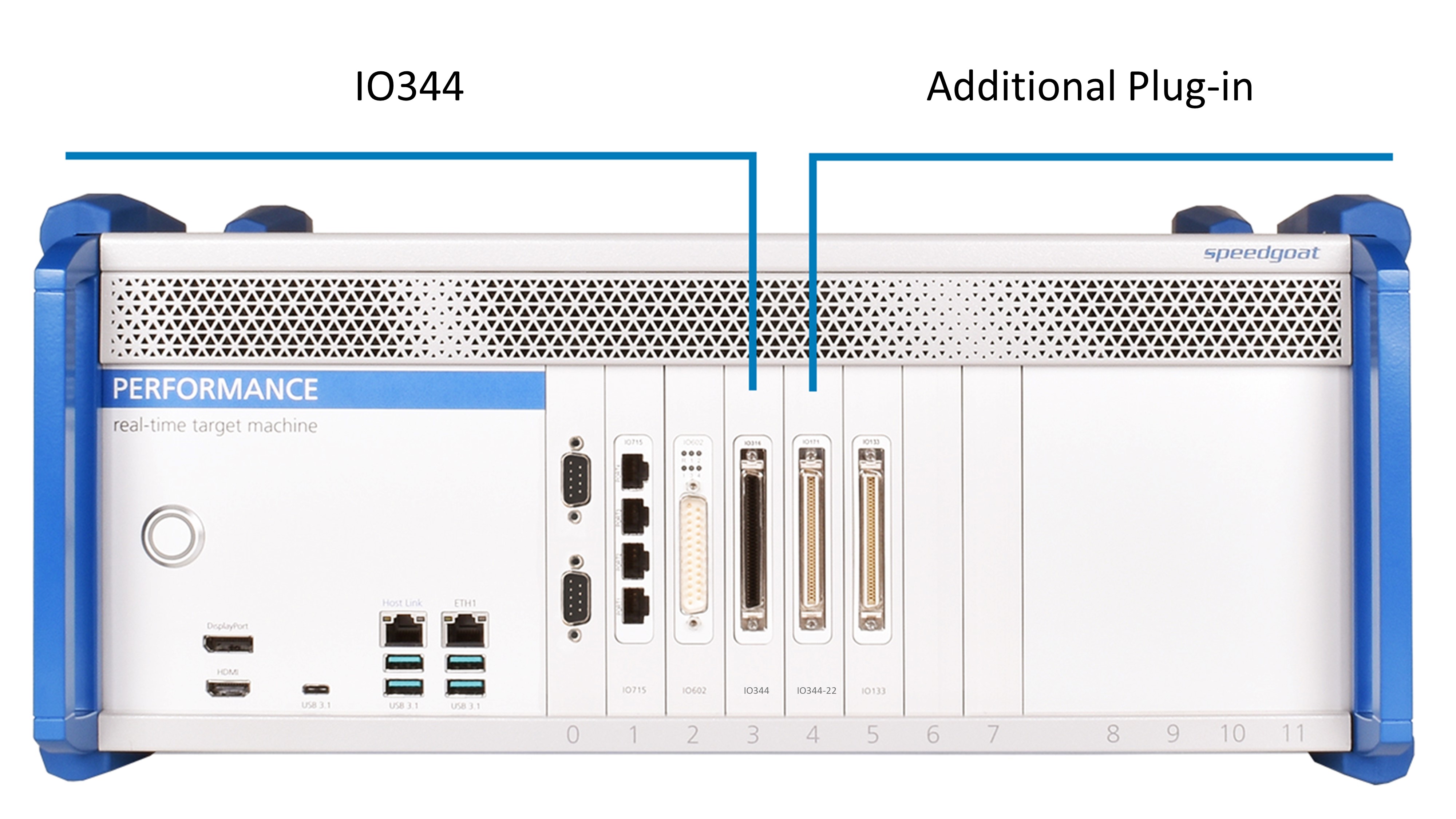

You can expand the capabilities of the IO344 using Speedgoat’s I/O interface extensions for additional digital I/O lines.

Furthermore, AMD^® Aurora protocol over fiber optics supports low-latency inter-module communication between multiple IO344s and other optically coupled, Aurora-capable I/O modules, in turn making it possible to extend I/O functionality and algorithmic resources.

Key Features

High-performance RFSoC with 930k FPGA logic cells for data processing
High-frequency signal acquisition up to 4 GSPS
High-frequency signal generation up to 6.4 GSPS
Aurora high-speed communication protocols over fiber optic; Lane rate up to 25 Gbit/s
Synchronization over GPS
Simulink-programmable FPGA workflow to use HDL Coder™ and Simulink Real-Time™ supported by the Speedgoat HDL Coder Integration Package


Physical
Form factor	PCIe x8 interface
Environmental
Operating temperature	0°C to +50°C
Relative humidity	5 to 95%, non-condensing
Connectors
2x MPO 25 Gbps	4 Aurora lanes per connector with a speed of up to 25 Gbit/s. Each lane rate speed can be configured individually
20x MMCX analog	Analog input, Analog output, Trigger signal, Clock signals and Pulse per second signal
SMA GPS antenna	GPS receiver for high-precision absolute time reference
Ethernet RJ-45	Only used for firmware updates
USB 3.0	Not active
Mini USB serial	Debugging connector
System on Chip
Device	AMD Zynq^® UltraScale+ XCZU27DR
FPGA logic cells	930k
Multi-Gigagbit Transceiver
Fiber optic communication	8 MGT on 2x MPO optical connectors
Analog inputs
Number of inputs	8x single-ended
Resolution	12 bits
Sample rate	Configurable, maximum 4.096 GSPS
Decimation	1x, 2x, 4x, 8x
Input type	Transformer coupled
Transformer type	Mini-Circuits TCM1-83X+
Full scale input	+10 dBm into 50 ohms
Input 3 dB passband	10 MHz to 4,000 MHz
Analog outputs
Number of outputs	8x single-ended
Resolution	14 bits
Sample rate	Configurable, maximum 4.096 GSPS; Configurable, maximum 6.4 GSPS (when analog input is not used)
Decimation	1x, 2x, 4x, 8x
Input type	Transformer coupled
Transformer type	Mini-Circuits TCM1-83X+
Full scale input	0 dBm into 50 ohms
Input 3 dB passband	10 MHz to 4,000 MHz
FPGA Coupled RAM
Type	2,400 MHz DDR4
Size	8 GB
I/O Interfaces
I/O Interface Extension
IO344-21	20x 3.3 V/5 V TTL I/O Lines
IO344-22	6x 3.3 V/5 V TTL I/O lines and 7x RS422/RS485 I/O lines

Item ID	Product Name	Components
2A3446	IO344	1x IO344 I/O module with Zynq UltraScale+ RFSoC, gen. 2 with 930k logic cells Cable Kit: 20x MMCX to SMA cables (3 ft/91 cm) Driver block library for Simulink Real-Time Simulink test models Comprehensive documentation and Simulink example models Installation into the real-time target machine

Optional Accessories
350081	MPO-to-MPO cable	Fiber optic MPO (female) to MPO (female) cable, (9.8 ft/3 m)
350082	MPO-to-4x SFP+ cable	Fiber optic MPO (female) to 4x LC UPC Duplex cable (6.6 ft / 2 m)

I/O Interface Extension (Optional)
2T3446	IO3XX-21	1x IO3XX-21 with a limited number of channels 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m) 1x 68-Pin Female MDR Terminal Board Installation onto the IO344 I/O module
2S3446	IO3XX-22	1x IO3XX-22 with a limited number of channels 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m) 1x 68-Pin Female MDR Terminal Board Installation onto the IO344 I/O module

HDL Coder Integration Package
3A44IP	IO344 HCIP	IO344 HDL Coder Integration Package HDL Coder integration for base module and available interfaces
