IO325

Simulink-Programmable FPGA I/O Module and Configurable I/O Module

The IO325 is a versatile Simulink-programmable FPGA and configurable I/O module combining fast and accurate analog input and output channels, which enable low-latency connectivity and high-frequency closed-loop sample times. The IO325 also supports digital input and output channels with a large selection of standard interfaces such as PWM, SPI, and I2C. This I/O module is ideal for control applications and simultaneous signal processing in various industries, such as automotive and power electronics.

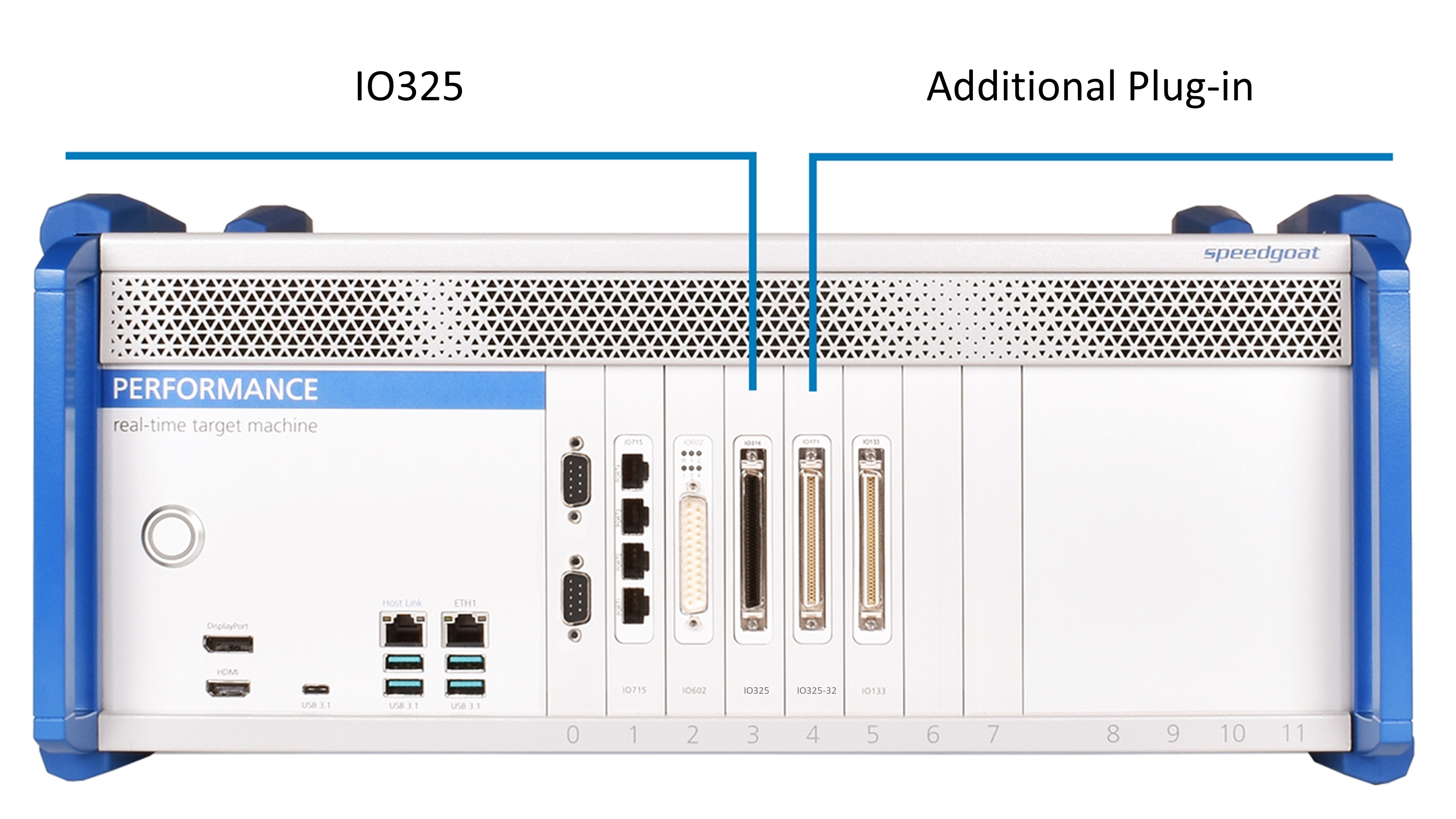

You can expand the IO325 capabilities with Speedgoat’s additional plug-ins for digital lines or additional functionalities such as SFP transceivers and resolver measurement.

In addition, take advantage of Speedgoat’s HDL I/O Blocksets for the Simulink-programmable FPGA workflow to achieve high-demanding closed-loop applications where sample rates in the MHz domain are required. Alternatively, you can choose Speedgoat’s configurable workflow for applications with closed-loop sample rates up to 20 kHz.

Furthermore, Xilinx® Aurora protocol support enables low-latency inter-module communication between multiple Simulink-programmable FPGA I/O modules, in turn making it possible to extend I/O functionalities and algorithmic resources.

Key Features

  • Closed-loop sample rates of up to 1.5 MHz
  • High-frequency signal generation
  • High-frequency acquisition and simultaneous conversion of multiple signals
  • Analog and digital inputs and outputs
  • Aurora high-speed communication protocols
  • Configurable workflow for Simulink Real-Time™ supported by Speedgoat configuration files and the Speedgoat I/O Blockset
  • Simulink-programmable FPGA workflow to use HDL Coder™ and Simulink Real-Time™, supported by the Speedgoat HDL Coder Integration Package

Physical
Form factor XMC
Electrical interface PCI Express x4 Link (Base Specification 2.1)
Connector Front I/O Samtec - ERF8-050-01-L-D-RA-L-TR
Environmental
Operating temperature -40 °C to +85 °C
Relative humidity 5 to 95 %, non-condensing
Analog Input
Number of inputs 8 differential
ADC resolution 16 bit
Max ADC sample rate 1.5 Msps simultaneous
Maximum differential input voltage range Software-selectable ±5 V, ±10 V, ±20 V
Maximum operating voltage range per input pin Software-selectable ±2.5 V, ±5 V, ±10 V
Sampling Mode Simultaneous
Analog Output
Number of outputs 4 single ended
D/A resolution 16 bit
Settling time  <1 µs (10mA/1000 pF)
Update rate Max.: 10 Mups (2 channels)
Min.: 3.7 Mups (4 channels)
Voltage ranges Software-selectable ±2.5 V, ±5 V or ±10 V
Max. output current 10 mA
Update Mode Simultaneous
FPGA
FPGA chip Xilinx Kintex-7 XC7K160T
Speedgoat product name IO325
Logic cells 160k
Digital IO
TTL / RS422 32 3.3 V/5 V (selectable) digital TTL I/O lines: up to 16 of the TTL lines can be reconfigured as 8 RS422/485 I/O lines with termination resistors enabled/disabled
Plug-ins
IO325 - Plug-ins
Additional Plug-Ins
IO325-21 56x 3.3 V/5 V TTL I/O lines
IO325-22 24x 3.3 V/5 V TTL I/O lines and 32x RS422/RS485 I/O lines
IO325-24 2 resolver measurement channels, 40 3.3 V/5 V TTL I/O lines (of which 16 configurable as RS422/485)
IO325-32 4 SFP+ interfaces for high-speed serial interconnects using Xilinx Aurora
Item ID Product Name Components
2A325X* IO325
  • 1x IO325 I/O module with 160k logic cells
  • Driver block library for Simulink Real-Time
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
Additional Plug-Ins (Optional)
23x21X IO3XX-21
  • 1x IO3XX-21
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation next to the IO325 I/O module
23x22X IO3XX-22
  • 1x IO3XX-22
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation next to the IO325 I/O module
23x24X IO3XX-24
  • 1x IO3XX-24
  • 1x 68-pin male MDR to 68-pin male MDR cable, (6 ft/1.82 m)
  • 1x 68-Pin Female MDR Terminal Board
  • Installation next to the IO325 I/O module
23x32X IO3XX-32
  • 1x IO3XX-32
  • Installation next to the IO325 I/O module
HDL I/O Blocksets (Optional)
303MOT Motion Control HDL I/O Blockset
  • A bundle of motion control functionalities that can be used for the Simulink-programmable workflow using HDL Coder.
  • This package contains PWM generation and capture, and encoder measurement and emu-lation (Quadrature, SSI, BiSS, EnDat, Cam/Crank and Resolver Emulation) functionalities.
303COM Communication HDL I/O Blockset
  • A bundle of communication functionalities that can be used for the Simulink-pro-grammable workflow using HDL Coder.
  • This package contains all communication protocol functionalities: SPI, I2C, SENT, Serial, and dShot.
HDL Coder Integration Package
3A25IP IO325 HCIP
  • IO325 HDL Coder Integration Package
  • HDL Coder Integration Package for the base module and available additional plug-ins


Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine
