IO342

Simulink-programmable FPGA I/O module

The IO342 is an FPGA I/O module capable of low-latency connectivity and high-frequency closed-loop sample times. The I/O module features a high-speed memory, up to 43 multi-gigabit transceivers (MGT), a PCIe interface and a FPGA chip with up to 1.45 M logic cells. Up to two I/O interfaces determine the analog and digital I/O functionality available.

This I/O module comes as a Simulink-programmable FPGA.

Key Features

  • Closed-loop sample rates of up to 100 MHz
  • High-frequency acquisition and signal generation
  • Analog and digital inputs and outputs
  • High-speed communication protocols
  • Simulink-programmable FPGA workflow to use HDL Coder™ and Simulink Real-Time™ supported by the Speedgoat HDL Coder Integration Package

Physical
Form factor PCle Card
Power requirements
  • 3.3 V (±5 %): 3 A per FMC plugin typical
  • 12 V (±5 %): 1 A per FMC plugin typical
  • VADJ (0 – 3.3 V): 4 A per FMC plugin typical
Bus PCI Express x4 Link (Base Specification 2.1)
Connectors
  • SFP+ 10 Gbps
  • PCIe Edge Connector
  • 2x Firefly® Connectors
  • 1/2 FMC Connectors
Environmental
Operating temperature

0 °C to +55 °C

Relative humidity 5 to 95%, non-condensing
Certification  AS9100
FPGA
FPGA chip  Xilinx® Kintex® UltraScale
Speedgoat product name

IO342-1450k/IO342-1080k

Logic cells  1451100/1088325
CLB flip-flops  1326720/995040
DSP Slices  5520/4100
Block RAM blocks  2160/1620
Block RAM  75.9 Mb/56.9 Mb
GTY Transceivers  43/35
MGT  GTY Transceivers (up to 16 Gb/s Max Rate)
PCIe Endpoint  8 MGT on PCIe Edge Connector

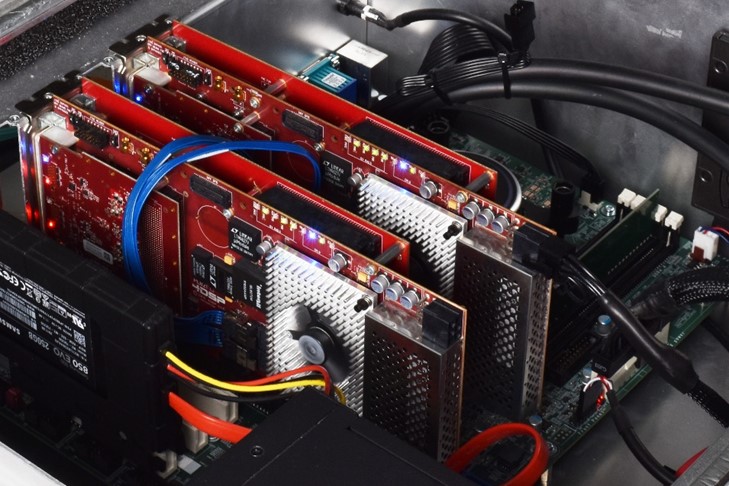

Inter-module communication

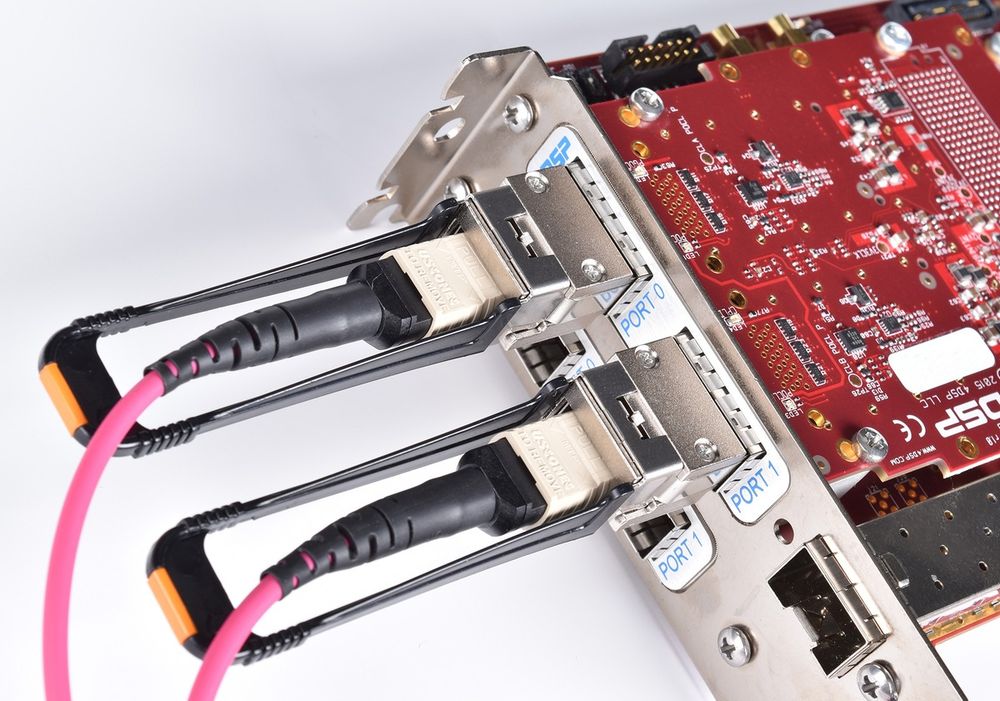

8 MGT on the Firefly Connectors and 1 MGT on the SFP+ Cage

FMC Routed MGT  24 MGT on the Primary FMC Site and 10/4 on the Secondary FMC Site
Digital I/O
MMCX

2x MMCX coaxial connectors

 GPIO Plugin

Supports access to the QSE-020 connector with 9 differential GPIOs

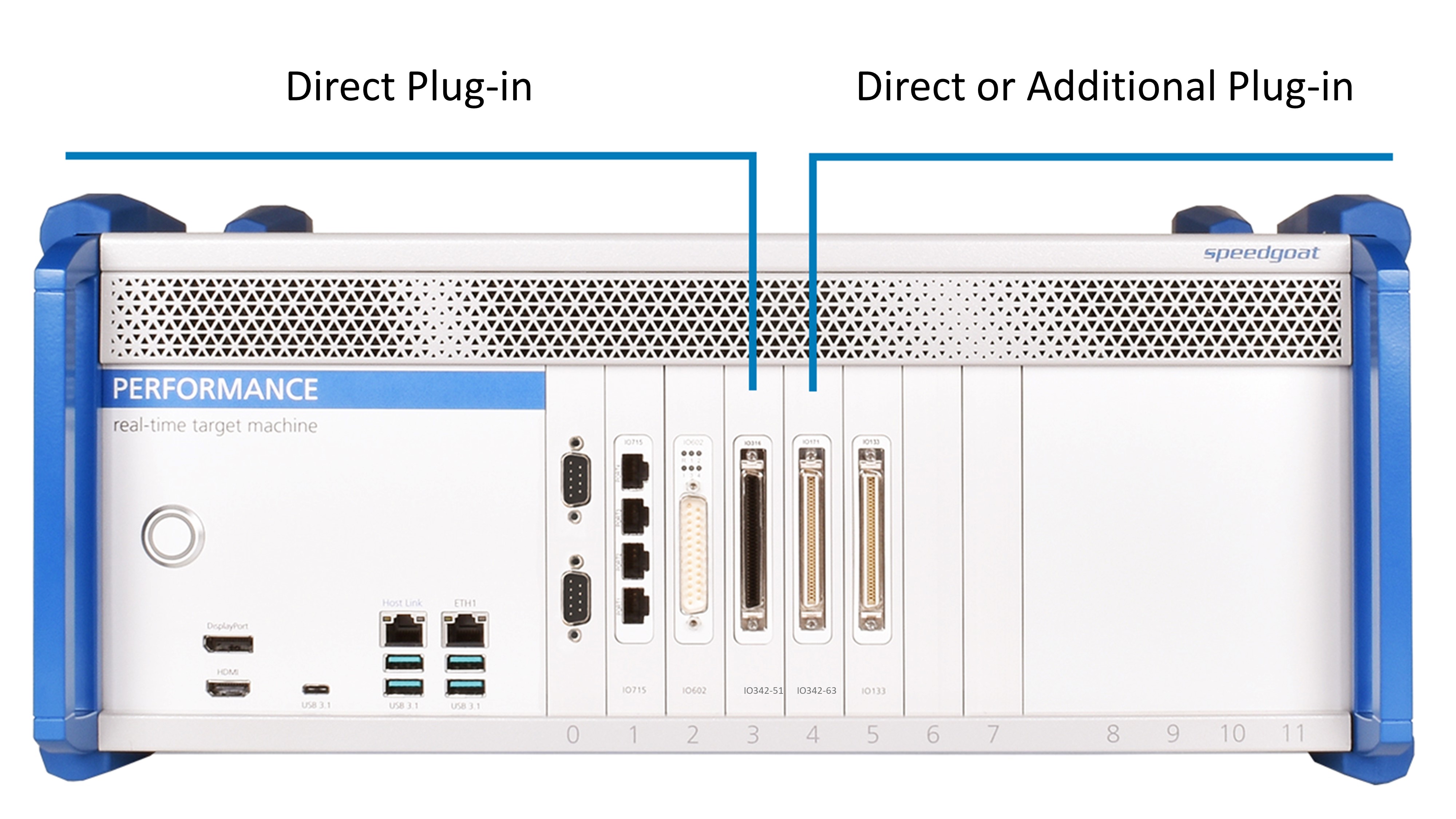

I/O Interfaces
IO342 - Plug-ins
I/O Interfaces
IO342-51 Plug-in with 2x QSFP+ connectors supporting a total of 8 MGT channels
IO342-63 Plug-in with 4x 16-bit analog inputs supporting up to 1 Gsps, and 4x 16-bit analog outputs supporting up to 1 Gsps
Extension I/O Interfaces
IO342-21 14x 3.3 V/5 V TTL I/O lines
IO342-22 6x 3.3 V/5 V TTL I/O lines and 4x RS422/RS485 I/O lines
IO342-32 Signal-conditioning I/O module provides access to 4x MGT I/O lines with 4x SFP+ cages

Item ID Product Name Components
2A3426  IO342-1.08M-1FMC
  • 1x IO342 I/O module with Kintex UltraScale FPGA with 1.08 M logic cells, and support for one FMC slot
  • Driver block library for Simulink Real-Time
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
2B3426  IO342-1.45M-1FMC
  • 1x IO342 I/O module with Kintex UltraScale FPGA with 1.45 M logic cells, and support for one FMC slot
  • Driver block library for Simulink Real-Time
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
2C3426  IO342-1.08M-2FMC
  • 1x IO342 I/O module with Kintex UltraScale FPGA with 1.08 M logic cells, and support for two FMC slots
  • Driver block library for Simulink Real-Time
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
2D3426  IO342-1.45M-2FMC
  • 1x IO342 I/O module with Kintex UltraScale FPGA with 1.45 M logic cells, and support for two FMC slots
  • Driver block library for Simulink Real-Time
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
I/O Interfaces
2P342  IO342-51
  • 1x IO342-51
  • 1x IO342-51 plug-in with 2x QSFP+ connectors supporting a total of 8 MGT channels
  • Installation onto the IO342 I/O module
2O342  IO342-63
  • 1x IO342-63
  • 1x IO342-63 plug-in with 4x 16-bit analog inputs at 1 Gsps and 4x 16-bit analog outputs at 1 Gsps
  • Installation onto the IO342 I/O module
HDL Coder Integration Package
3A32IP  IO342 HCIP
  • IO342 HDL Coder Integration Package
  • HDL Coder integration for all the interfaces of the direct and additional plug-ins available for this module
* Please replace the X with the code number of the specific target machine for the I/O module installation:
6 = Performance real-time target machine



Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.

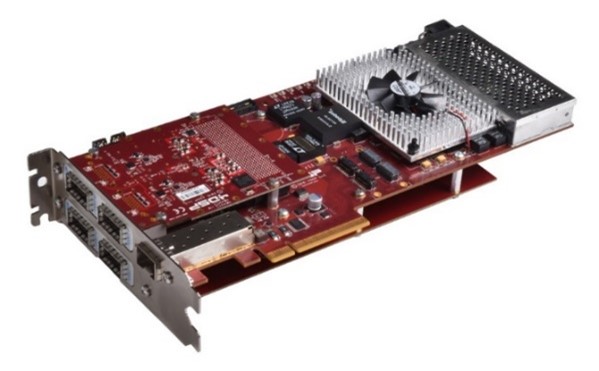

IO342front

Included in the Delivery

Common Applications

  • Rapid control prototyping
  • Hardware-in-the-loop (HIL) simulation
  • Real-time video applications supporting protocols such as HDMI and SDI

Supported Target Machine
