IO333-SFP: Simulink-programmable FPGA I/O Module

Simulink-programmable FPGA I/O module with Xilinx Kintex-7 and selectable I/O options, with Simulink driver blocks

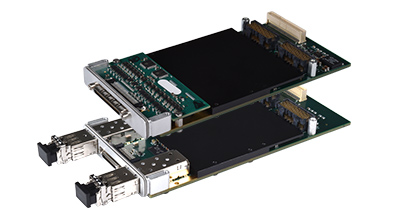

The IO333-SFP is a FPGA I/O module capable of low-latency connectivity and high-frequency, closed-loop sample times.

The I/O module features a high-speed memory, two SFP+ cages, four multi-gigabit transceivers (MGT), a PCIe interface and a FPGA chip with either 325k or 410k logic cells. Additional rear plug-ins determine the digital I/O functionality available.

This I/O module is available exclusively as a Simulink-programmable FPGA.

Key Features

  • Closed-loop sample rates of up to 10 MHz
  • High-frequency acquisition and signal generation
  • Analog and digital inputs and outputs
  • High-speed communication protocols
  • Video input and output for Video processing applications
  • Simulink-programmable FPGA workflow to use HDL Coder™ and Simulink Real-Time™ supported by the Speedgoat HDL Coder Integration Package

Physical
Form factor XMC
Power requirements 3.3 V (±5 %): 9.9 W typical
12 V (±5 %): 3 W typical
3.3 V AUX (±5 %): 57 µW typical

Bus PCI Express x4 Link (Base Specification 2.1)
Connectors XMC connector for rear plug-in
VHDCI connector with digital I/O lines
2 SFP+ cages

Environmental
Operating temperature -40°C to +70°C
Relative humidity 5 to 95%, non-condensing
Radiated field immunity (RFI) Complies with IEC61000-4-3 class A
Electromagnetic interference immunity (EMI) Complies with IEC61000-4-6 class A
Electric fast transient immunity (EFT) Complies with IEC61000-4-4 class A
Radiated emissions Complies with CISPR 16-2-3 class A
MGT GTP  Transceivers (6.6 Gb/s Max Rate)
PCIe Endpoint 8 MGT on PCIe Edge Connector
Inter-module communication  2x MGT on front SFP+ cages and 4 MGT on XMC P16 Connector
Video processing 1x HDMI Input and 1x HDMI Output with resolutions up to 1080p
Rear Plug-Ins
IO333-21  56x 3.3 V/5 V TTL I/O lines
IO333-22  24x 3.3 V/5 V TTL I/O lines and 32x RS422/RS485 I/O lines
IO333-32  Signal-conditioning I/O module provides access to 4x MGT I/O lines at the front with 4x SFP+ cages
Digital I/O
XMC P16  4 differential digital I/O lines configurable with 2.5 V standard for machine internal synchronization or communication
Front VHDCI  26x LVCMOS25 (or 13x LVDS_25) digital I/O lines



FPGA                       IO333-325k- SFP IO333-410k-SFP
FPGA chip  Xilinx® Kintex®-7   Xilinx® Kintex®-7
Speedgoat product name   IO333-325k-SFP   IO333-410k-SFP
Logic cells   326080  406720
CLB flip-flops  407600 508400
DSP Slices  840 1540
Block RAM blocks 445 795
Block RAM  16020 Kb  28620 Kb
GTP Transceivers   16 16
Inter-Module Communication Concept

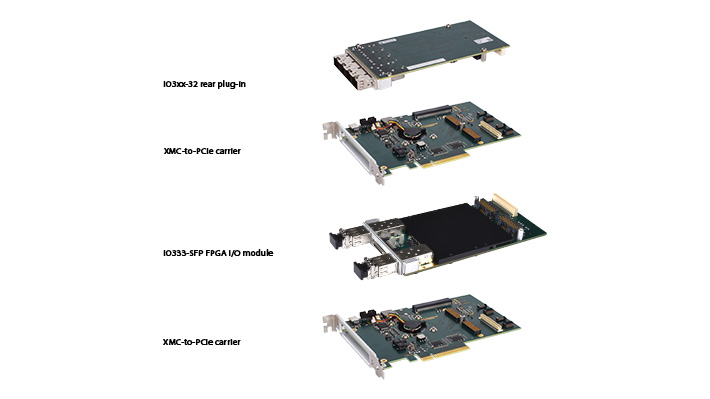

Plug-In Concept



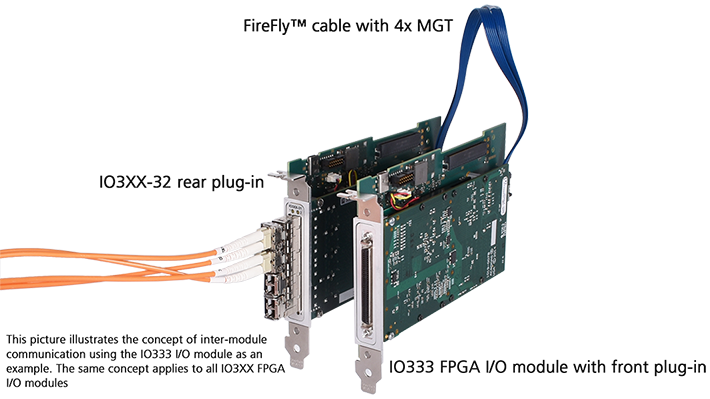

For installation into the Performance real-time target machine the IO333 FPGA I/O module is mounted on an XMC to PCIe carrier together with the optional front plug-in (e.g. IO33X-2). The optional rear I/O signal conditioning plug-in (e.g. IO3XX-21) is mounted on another PMC to PCI or PMC to PCIe carrier in the PCI/PCIe slot next to the IO333. The two modules are linked through a ribbon cable at the rear.

The IO333 can be installed into all Speedgoat real-time target machines. However, rear I/O lines (64 single-ended digital / 32 LVDS) are only accessible with the Performance real-time target machine. Cables and terminal boards for rear I/Os are included in delivery.

The I/O lines of the front plug-in modules are always accessible, for all target machines.

Item ID Product Name Components
2A333X*  IO333-325k-SFP
  • 1x IO333-SFP I/O module with 325k logic cells
  • Driver block library for Simulink Real-Time
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
2A333X  IO333-410k-SFP
  • 1x IO333-SFP I/O module with 410k logic cells
  • Driver block library for Simulink Real-Time
  • Simulink test models
  • Comprehensive documentation and Simulink example models
  • Installation into the real-time target machine
Rear Plug-Ins
2I333X  IO333-21
  • 1x IO33X-21
  • 1x 6 ft/1.82 m shielded and twisted round cable featuring a 68-pin male SCSI3 connector to a 68-pin male MDR connector
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation next to the IO333 FPGA I/O module
2J333X  IO333-22
  • 1x IO33X-22
  • 1x 6 ft/1.82 m shielded and twisted round cable featuring a 68-pin male SCSI3 connector to a 68-pin male MDR connector
  • 1x DIN-rail mountable terminal board with a 68-pin female SCSI3 connector and spring-loaded terminals
  • Installation next to the IO333 FPGA I/O module
HDL Coder Integration Package    Components
3A33IP  IO333-325k HCIP
  • IO333-325k HDL Coder Integration Package
  • HDL Coder integration for all the interfaces of the front and rear plug-ins available for this module
3B33IP  IO333-410k HCIP
  • IO333-410k HDL Coder Integration Package
  • HDL Coder integration for all the interfaces of the front and rear plug-ins available for this module

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.


IO333 Reconfigurable FPGA-based I/O module

Included in the Delivery

  • I/O module installed into real-time target machine
  • Cable
  • Terminal board
  • Simulink driver blocks
  • Test models
  • Comprehensive documentation
